Deleting measurement lines

When you no longer need a measurement line, you can delete it. Deleting the line can take place in the 3D work area or in the tabular area.

To delete a measurement line in the 3D work area

1. Select the measurement line that you want to delete.

2. Right-click, and then click Delete on the context menu.

To delete a measurement line in the tabular area

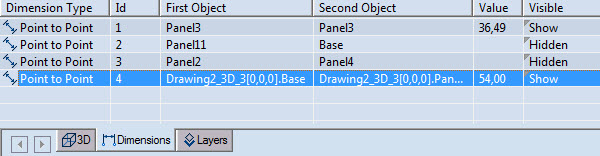

1. In the tabular area, in the Dimensions tab select the row of the measurement line that you want to delete.

2. Right-click the selected row, and then click Delete.
