The 3D work environment: The Dimensions tab

In this tab, you can inspect the measure lines (dimensions) added to the 3D model.

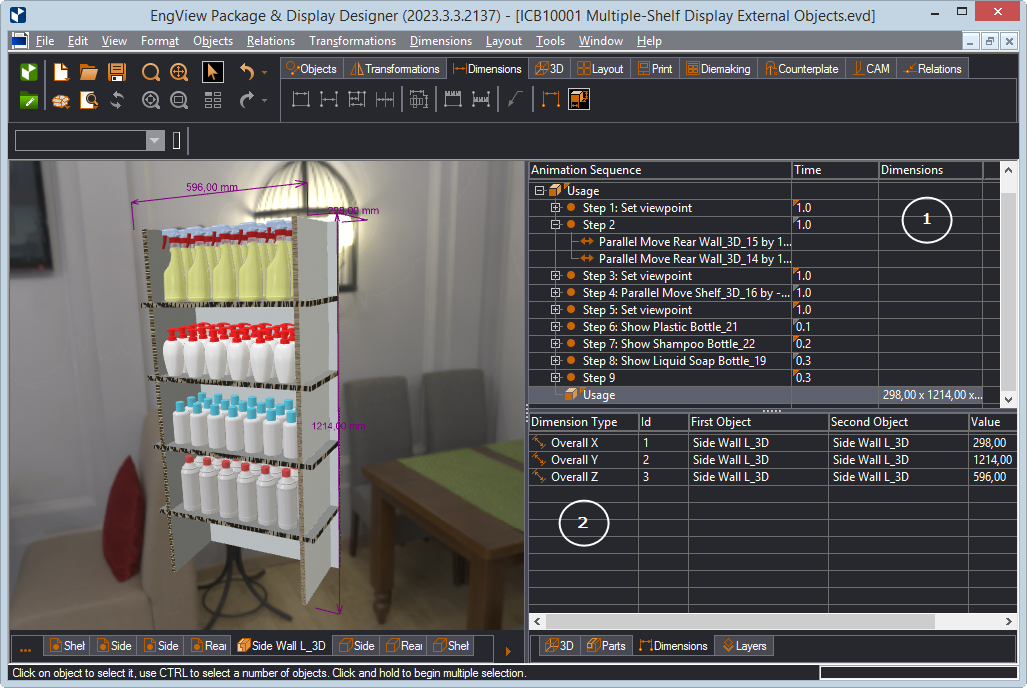

Dimensions Tab
  1. The phases, steps and actions of the 3D model's folding sequence.
  2. This table lists the measure lines added to the 3D model. Learn more about how to add measure lines to 3D models.
