The 3D work environment: Layers, articles and finishing effects

In this tab, you can apply the articles and finishing effects created for the 3D model, and inspect the visual impact they give the model.

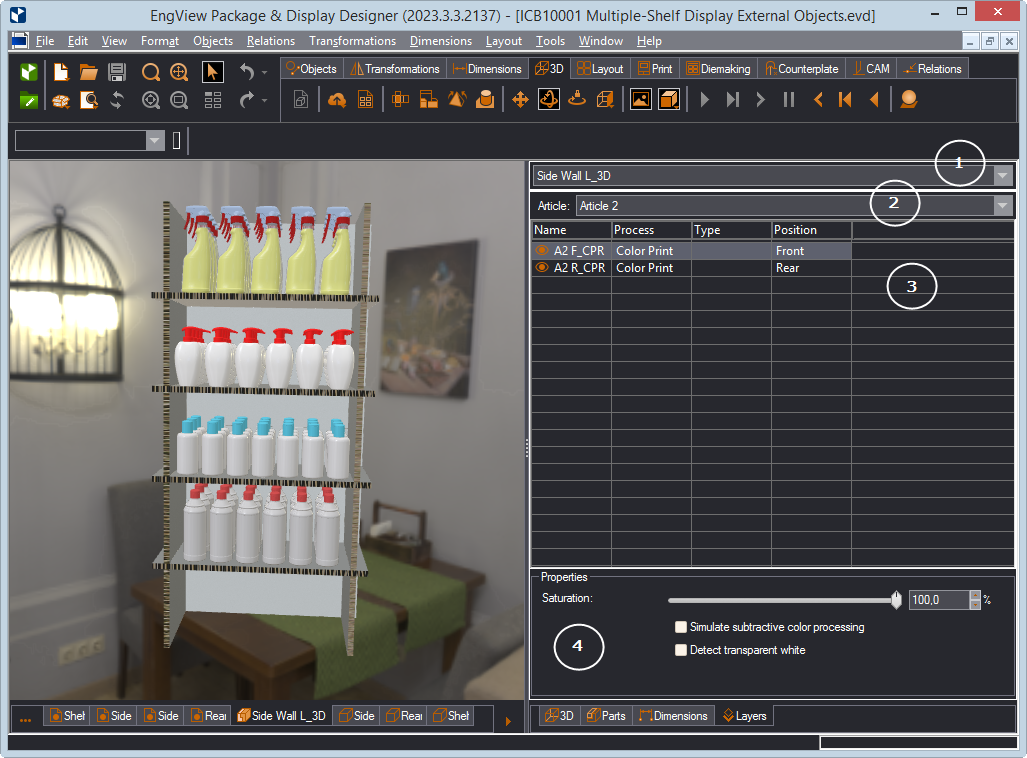

Layers Tab

NOTE: This panel lists the parameters of the design that is active in the 3D model area.

  1. This drop-down lists contains the 3D parts that take part in the assembled 3D model. When you select a part in the list, the part is highlighted in the 3D model area. You can then start working on the part by applying articles to it.
  2. This drop-down lists contains the articles created for the model's parts. When you have selected a part, you can begin applying articles to it and review their visual impact. Learn more about how to create articles.
  3. This table lists the finishing effect-carrying layers that have been added to the article. In the table, you can switch on and off effects and inspect their visual impact. Learn more about how to create finishing effects.
  4. This section displays properties applicable to the process that you see in the Process column. You can use the controls to alter the apearance of the applied effect.
