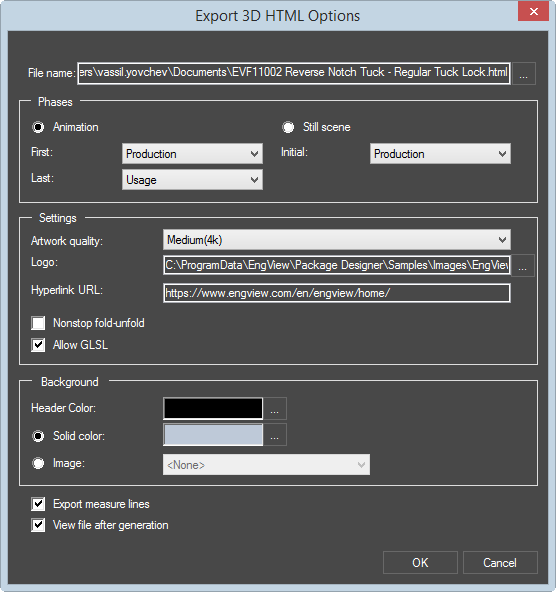

| Settings | Settings about the color and the image that will make up the file's background | Set the grade of quality of the applied artwork, the textures in the exported file, as well as the used logo and whether to use a folding loop. |
|---|---|---|
| Artwork quality | Set the quality in which you want EngView
to export the textures on the 3D model.
TIP: You can set a quality size of up to 16k, but before setting a size, make sure that the video adapter that will be displaying the exported file supports this quality size. |
|
| Logo | (Optional) Loads an image that will serve as a logo in the exported file. | |
| Hyperlink | (Optional) Type the full URL (including the protocol part: http:\\; https:\\; ftp:\\ or other) of a website that you want to associate with the logo. When in the exported fil, you click the logo, your default web browser will open the website. | |
| Nonstop fold-unfold | Makes the 3D model fold and unfold without stopping.
NOTE: This functionality applies to the phases you set for From and To in the Export dialog box. |
|
| Allow GLSL | Select this check box to include shader-dependent effects in
the exported file. These effects include smooth edges along crease
lines, imprint effects (embossing and debossing) and varnished
surfaces.
IMPORTANT: Leaving the check box empty will not visualize crease line in the exported file. |
|
| Background | Settings about the color and the image that will make up the file's background. | |
| Header color | Sets the color for the horizontal banner above the view area. This banner contains the logo and instruments controlling the 3D model's navigation and visualization. | |
| Background color | Sets the color on which the 3D model will appear in the exported file. | |
