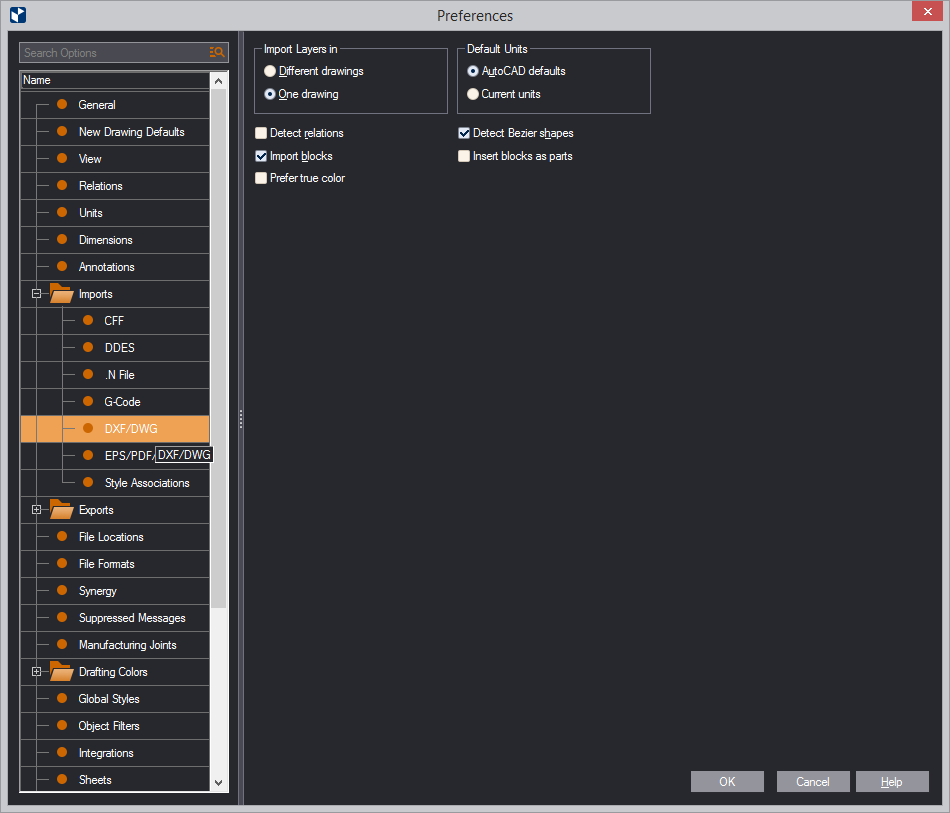

| Import Layers Into | Options for how to import the layers of a DXF drawing: as separate drawings or as a single drawing. |
|---|---|
| Different drawings | Imports each layer of the DXF drawing as an individual drawing. |
| One drawing | Imports the layers of the DXF drawing into a single drawing. |
| Default Units | Choose which measurement units to use when importing a .dxf drawing. |
| AutoCAD defaults | Imports the .dxf drawing with the measurement units that were applied when the file was created. |
| Current units | Imports the .dxf drawing with the measurement units set in EngView. |
| Detect relations | The imported drawing takes account of any relations between the objects. |
| Import blocks | The imported drawing takes account of any blocks in the source .dxf file. |
| Prefer true color | The imported drawing treats colors according to the RGB display mode and not according to a color look-up table. |
| Detect Bezier shapes | Displays the available Bezier shapes in the .dxf files. If the check box is empty, EngView reduces polylines and Bezier curves down to sequences of simple objects — most often, arcs and lines. |
| Insert blocks as parts | The imported drawings has any .dxf blocks as individual parts. |
