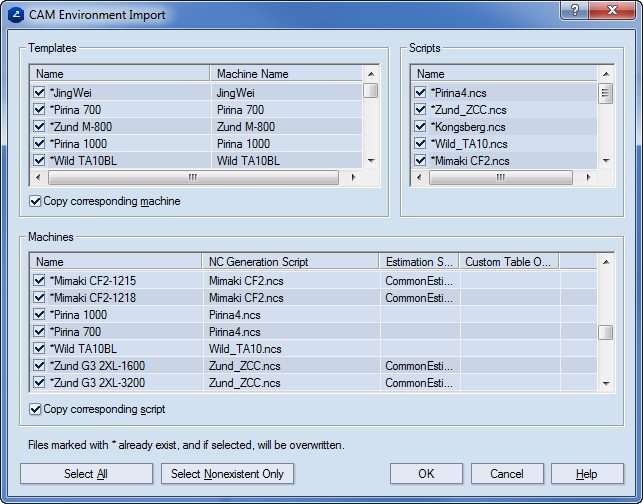

The CAM Environment Import dialog box appears.
Templates A list of all CAM templates in the CAM environment. Learn how to create and edit CAM templates.
Name The names of the CAM templates. Select the templates that you want to export.
Machine name Displays the CAM machine which is assigned to the CAM template.
Copy corresponding machine Exports the CAM machines on which the selected CAM templates are based.
IMPORTANT: Selecting this check box overrides any check box selections in the list above.
Scripts A list of all predefined NC scripts in the CAM environment
Name Lists the available NC scripts. Select the ones that you want to export.
Machines A list of all virtual CAM machines in the CAM environment. Learn how to set up and edit CAM machines.
Name The names of the available CAM machines. Select the machines that you want to export.
NS Generation Script Displays the NC script which defines the respective CAM machine.
Estimation Script Displays the name of the script that holds information about the actions that the machine executes.
Custom Table Outline Displays the .evd file which visualizes the machine.
Copy corresponding script Select this check box if you want to export in the CAM environment the NC scripts for the selected machines.
IMPORTANT: Selecting this check box overrides any check box selections in the list above.
Select All Selects all CAM machines, NC scripts and CAM templates to be exported in the CAM environment of the system.
Select Nonexistent Only Selects only the CAM machines, NC scripts and/or CAM templates which are not featured in the system.
