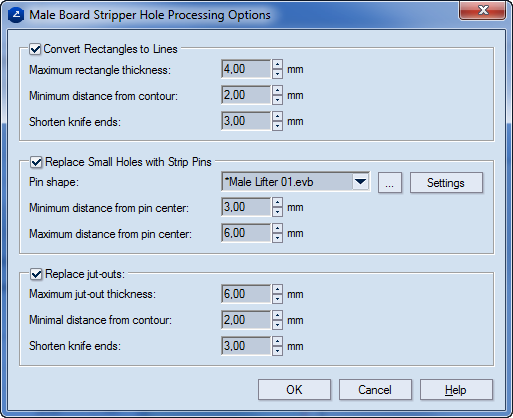

Convert Rectangles to Lines Converts rectanglelike areas into stripping segments. Generally, a stripping knife is positioned centrally and lengthwise.
Maximum rectangle thickness Sets how thick an area should be to be converted.
Minimum distance from contour Sets the minimal distance of the stripping line segment to the contour.
NOTE: The value in Maximum rectangle thickness must be at least twice that in Minimum distance from contour.
Shorten knife ends Sets the distance by which a stripping knife should be shortened on either end.
Replace Small Holes with Strip Pins Sets how circular holes should be replaced with strip pins.
Pin shape Displays the currently used pin shape component.
Minimum, maximum distance from pin center Sets, respectively, the lower and upper values for the distance from the circular hole's periphery to its center.
Replace jut-outs Sets the properties of the protruding stripping tool ends.
Max jut-out thickness Sets the maximal thickness of the stripping tool ends.
Minimal distance from contour Sets the minimal distance that the stripping tool end must have to the contour.
Shorten knife ends Sets the length of ends' tips.
