Work environment

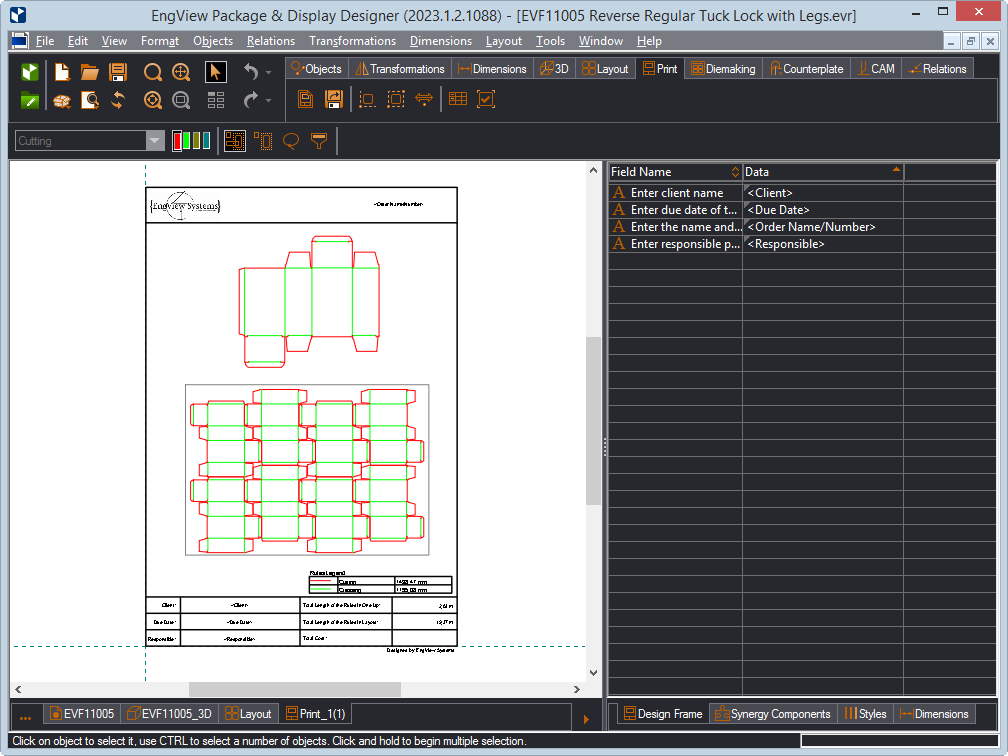

A print drawing featuring a 1up and layout drawings, as well as table with text and data-extracting formulas.

The Print toolbar

Icon	Control Name	What It Does
	New Print Drawing	Opens a dialog box in which you can choose a print template for your print presentation.
	Export Print Drawing	Opens a dialog box in which you can choose how to export the print drawing — to a file or to Project Organizer.
	Place Part	Begins inserting a drawing into the print drawing in its original form and appearance.
	Place Part by Rectangle	Begins outlining a rectangular area into which a drawings are inscribed as a print part. The inserted drawing is then scaled automatically to fit the rectangle.
	Flute/Grain	Adds a symbol indicating a part's flute (or grain). The symbol can be added as a default option to a print template or a one-time feature in a print drawing. Learn how to insert the flute/grain symbol. TIP: Inserting the symbol makes sense if you want to add the symbol to a specific drawing but not to all drawings.
	Place Print Legend	Turns on the mode for drawing a table with statistics about the length of the rules used in a design.
	Check Box	Turns on the mode for inserting check box symbols into drawings.

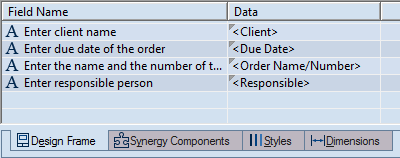

The Design Frame tab in the tabular area

Field Name	Displays the editable text fields predefined in the design frame.
Data	In this column you can type text, or edit existing text, which will appear automatically in the graphical area. To enter text, double-click a field, and then type the text.
