Changing the color in layers for Monochrome Print, Special Ink, and Partial Foil Stamping

When working with the processes Monochrome Print, Special Ink Print and Partial Foil Stamping, which type allows color change you can change the color directly in Illustrator.

To change the color

1. In Illustrator, go to the EngView Processes panel.
2. In the Layers column, click and select the layer that carries the color.

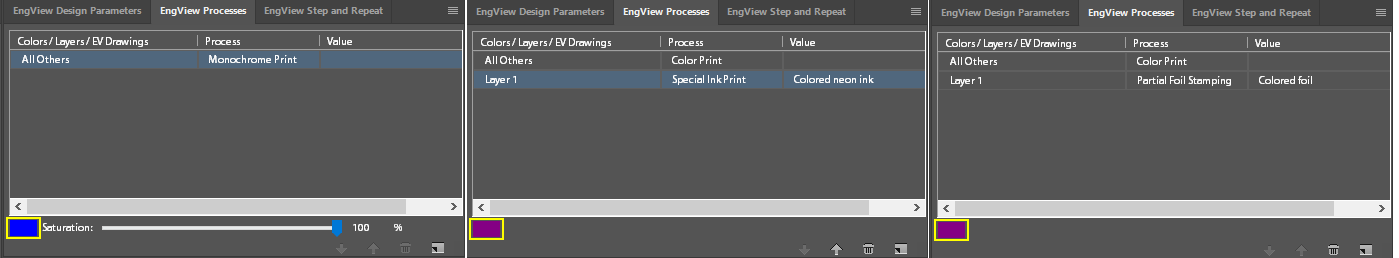

A small color rectangle appears in the panel's lower left area. The rectangle is colored in the color currently applied to the color-carrying layer (pictured).

3. Click the rectangle, and then choose the color that you want to apply to the layer.
4. Click OK, and look in the EngView 3D panel. The integration has applied the selected color to the layer.
