Editing an existing template

NOTE: By default, EngView offers bw_printing.evt for black-and-white printing and color_printing.evt for printing in color.

1. On the Tools menu, click Edit Export Template.

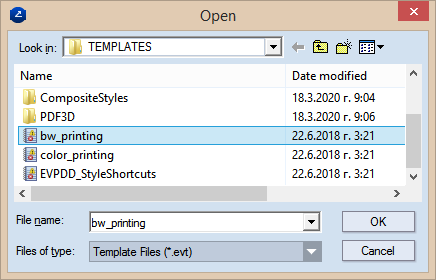

2. Select the template that you want to work with, and then click OK.

The Global Styles dialog box opens.

3. Edit the global properties of the styles that you will need for printing or exporting.

NOTE: The following style modifications are examples:

• In the Production tab, edit the line width. (This most offen involves changing the production width of a style to serve printing purposes.)

• In the Visual tab, edit the color and the pattern of the style.

3. After you have modified the styles' properties, click OK. The template is now ready for use.
