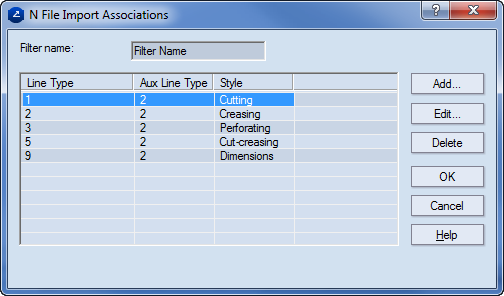

Line type (Read-only) Displays the line type for an association. During import, all objects with line types in the range are associated with the EngView style in the respective row.
Aux line type (Read-only) Displays the auxiliary linetype for the respective association. During import, all objects with auxiliary line types in the range are associated with the EngView style in the respective row.
Width Displays the width for the respective association. During import, all objects whose widths are in the range are associated with the EngView style.
Style (Read-only) Displays the EngView style associated with the linetypes in the respective row.
Add Opens a dialog box in which you create a new association.
Edit Opens a dialog box in which you edit a selected association.
Delete Deletes an association.

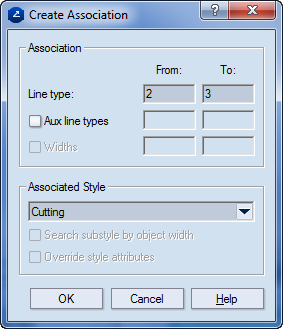

Association
Line type Sets the line type range for a new association. During import, all objects whose line types are in the range are associated with the EngView style specified in Style.
Aux line type Sets the auxiliary line type range for a new association. During import, all objects whose auxiliary line types are in the range are associated with the EngView style specified in Style.
Widths Sets the width range for the selected association. During import, all objects whose widths are in the range are associated with the EngView style specified in Style.
Associated Style
Style Sets the style with which the current CFF object properties will be associated. During import, all matching objects are associated with the EngView style in the respective row.
Search substyle by object width During import, a search is run in the respective row of all substyles, if any, of the style. Then the substyle is set with which the current CFF object properties will be associated. During import, all matching objects are associated with a respective substyle of the style in the respective row. The width of each particular matching object is rounded off to the line width of the corresponding substyle in the Object Properties dialog box.
Override style attributes Select the check box to preserve the width of each particular matching object. During import, the EngView style in the respective row is overridden, and a different line width is set in the Object Properties dialog box.
