Setting objects for counterplate grooves

You can specify the objects which you want the program to process as creases. You specify these objects by declaring their styles. While generating a counterplate, the program will create grooves for the objects in those styles.

To specify crease objects in counterplate

1. On the Tools menu, point to Counterplate, and then click Options.

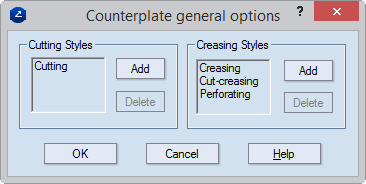

The Counterplate General Options dialog box appears.

In the Creasing Styles area, you see the styles that the program treats in the generation of crease grooves.

2. To add a style to the groove-generating, in the Creasing Styles area, click Add, and then, in the list that appears, select the style that you want. Repeat for each style that you want to add.
3. To remove a style, select it, and then click Delete.
