Importing DXF, DWG files

1. On the File menu, click Import.

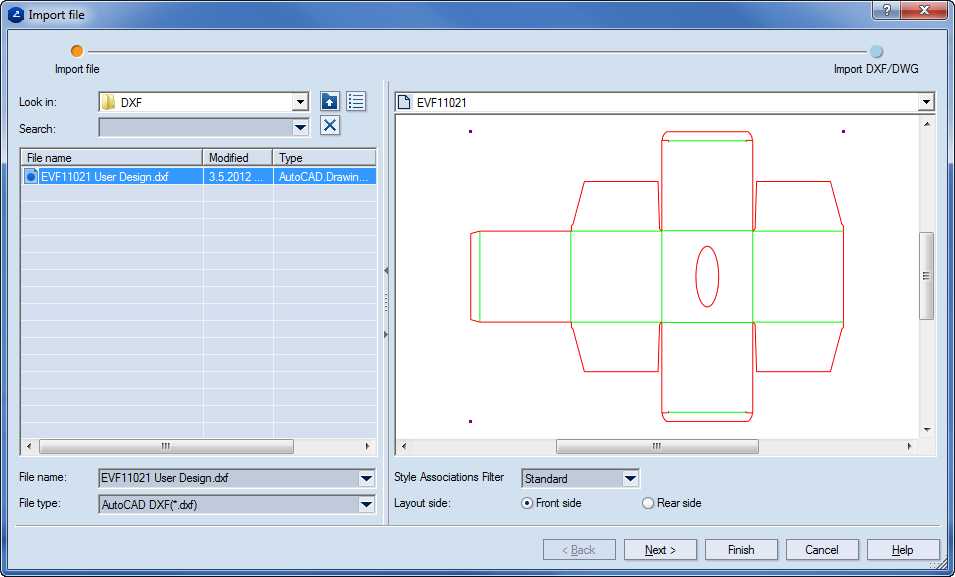

The Import file dialog box appears at the Import file step.

NOTE: In the Import dialog box, you can import a file also from Project Organizer.

3. In Look in, browse to a location, and then select the file you want to import.
4. Click Next.

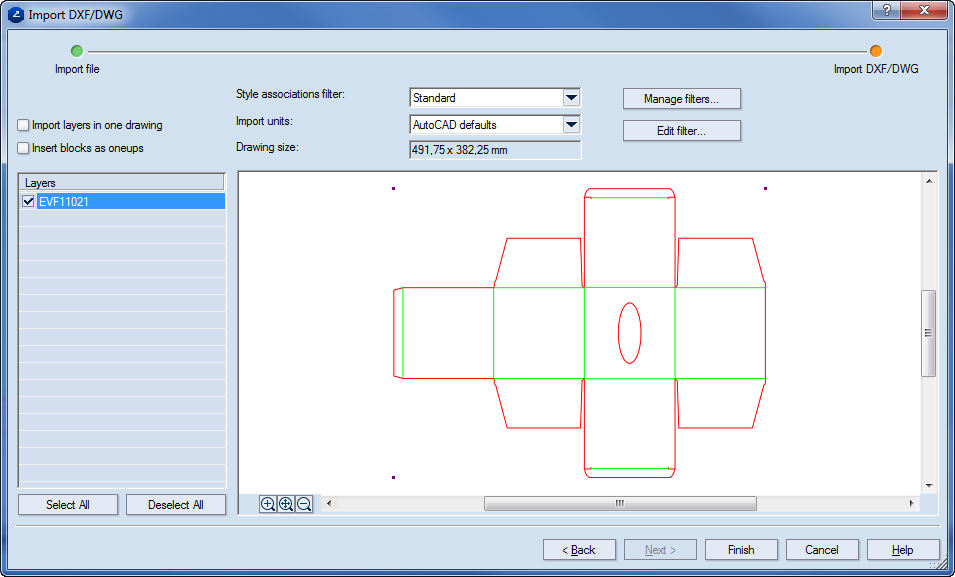

6. In Style associations filter, select the association scheme (Standard or B&W) that you need.
7. To import the file's blocks/layers into a single drawing, select the Import layers in one drawing check box.
8. To import each of the file's blocks/layers into separate drawing, select the Insert blocks as parts check box.

TIP: To import the blocks/layers into a single drawing and simultaneously as separate drawings, select both the Insert blocks as parts and Import layers in one drawing check boxes.

9. To choose the units in which the import will be carried out, in Import units select the units that you need.
10. In the Layers area, select the layers in the file that you want to import.
11. To carry out the importation, click Finish.
