Importing EVD files

1. In an open project, on the File menu, click Import Into Current Project.

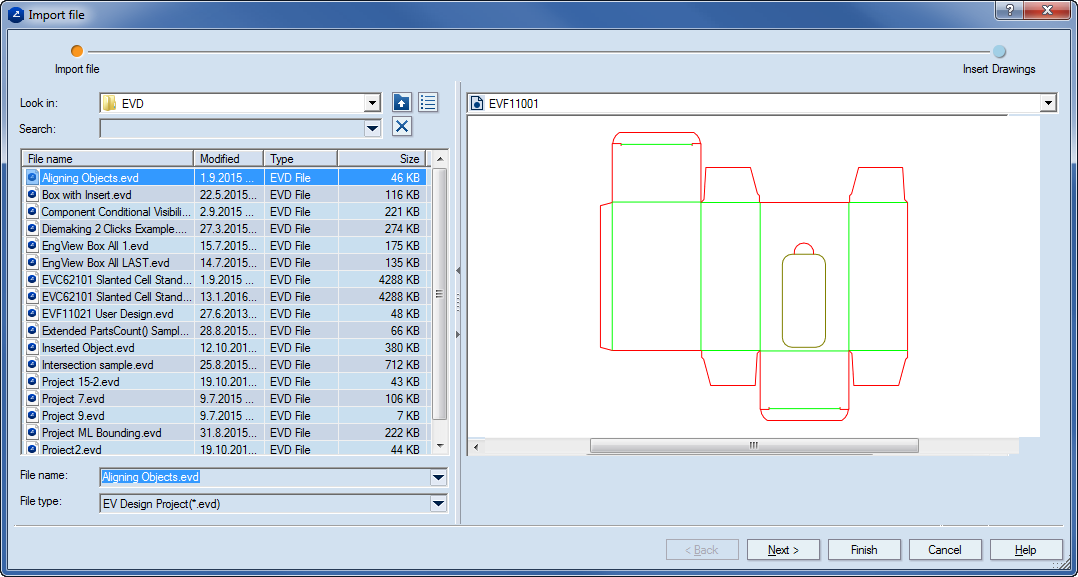

The Import file dialog box appears at the Import file step.

2. In Look in, browse to the folder where the file is that you want to import.
3. Select the file that you need, and then click Next.

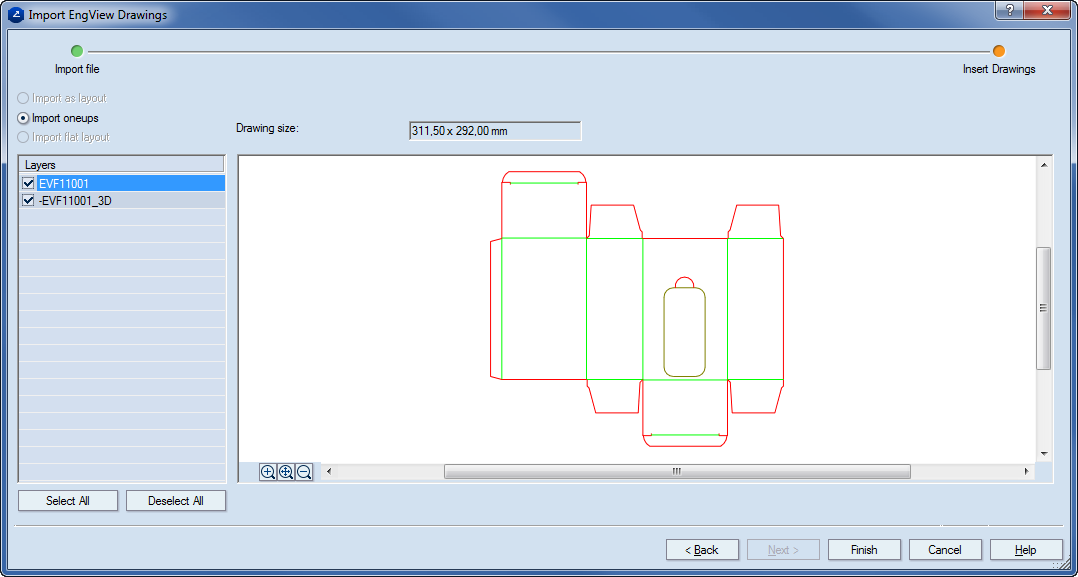

The Insert drawings step appears.

The step contains a list of the layers in the drawing. Depending on the your technological needs, you can select only the layers that you need imported, and leave the unnecessary ones.

4. In the Layers list, select the layers that you want to import into the project.
5. To complete the import procedure, click Finish.
