Working with parameter groups

1. In the tabular area, click the Parameters tab.
2. In the table, right-click, point to Groups, and then click Manage on the context menu.

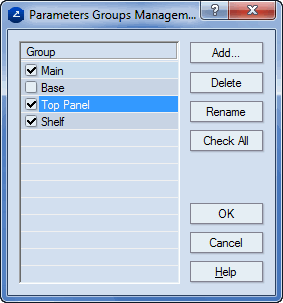

The Parameters Groups Management dialog box appears.

3. Consider the following cases:

• To create a parameter group, click Add, and then in the dialog box that appears, type a name for the new group. The new group appears in the list in the Group area, and can be selected.

• To delete a parameter group, select it in the list, and then click Delete. NOTE: When you delete a group, EngView moves the parameters that are assigned to it to the group Main.

• To rename a parameter group, select it, click Rename, and then, in the dialog box that appears, type a new name for the group.

4. Click OK.
