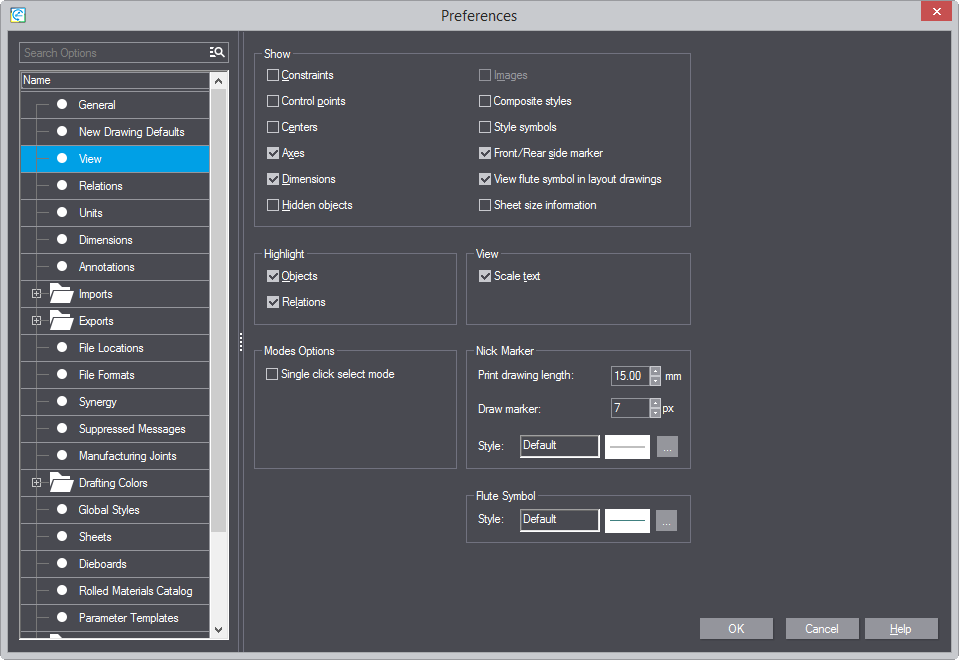

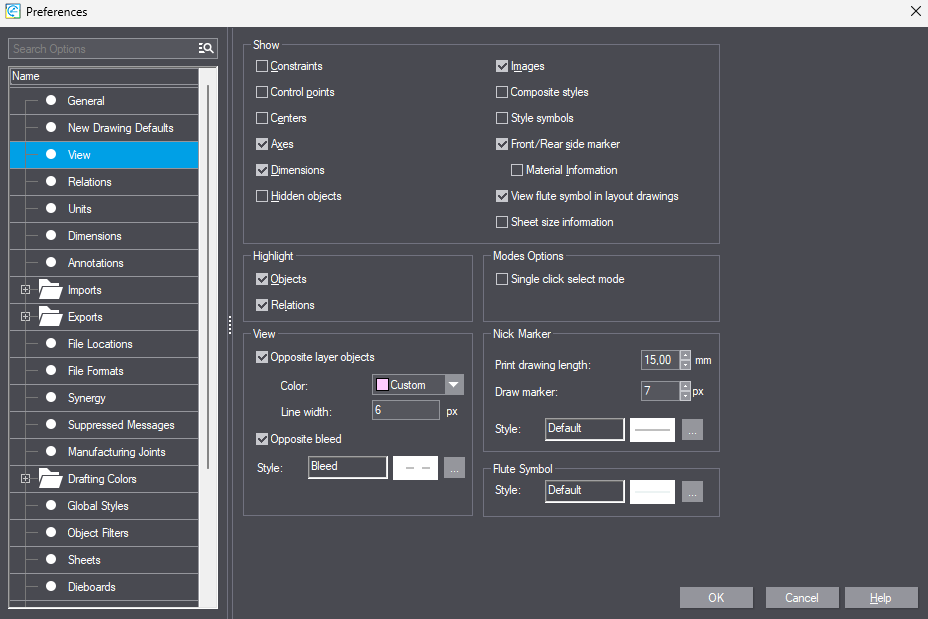

Preferences for the display of objects

Show	Sets the attributes that will appear on the screen. NOTE: Apart from the commands Dimensions and View flute symbols in layout drawings, the commands in the Show section produce identical effects as the commands that you find when you double-click in the graphical area, and then point to Show.
Constraints	Displays the constraints in drawings.
Control points	Displays the control points in drawings.
Centers	Displays the center points of arcs and circles in drawings.
Axes	Displays the coordinate axes in drawings.
Dimensions	Displays the dimensions in drawings.
Hidden objects	Displays the hidden objects in drawings.
Images	Displays the images in drawings.
Composite styles	Displays how composite styles actually appear when applied to the media.
Style symbols	Displays the marks (images) that designate the styles when the drawing is viewed on the screen or is printed out. NOTE: The use of style symbols is optional. Learn how to designate marks to styles.
Front/Rear side marker	Displays the Print/Rear side marker, which indicates if the design is facing its print or die side. To change the design orientation, in the graphical area right-click, point to Show, and then ensure that View Front Side is not checked.
Material Information	Causes Prinect to display a tooltip with information about the material name and current thickness; material type; and the name and size of the applied sheet. To see the tooltip, position the mouse pointer over the marker in the upper left corner of the graphical area.
View flute symbol in layout drawings	When this check box is selected, the flute/grain symbol appears in layout 1ups. NOTES: If the flute/grain direction of a 1up is changed, the flute/grain symbol appears again for each layout 1up whose flute/grain direction is different from the newly set. In a layout, if a new layout 1ups is added whose flute/grain is different from that of the layout and this has led to the change of the flute/grain direction of the layout, the flute/grain symbol appear even if they have been suppressed. If the flute/layout symbol is never to appear on layout drawings regardless of any of the above changes, switch off the material's awareness to the flute or grain (in the Drawing Material Properties dialog box).
Sheet size information	When a sheet is in a drawing, the sheet size appears in the sheet's upper left corner, outside the sheet border. The size is displayed in the set default units and precision — for example, 1016.00 x 762.00.

Highlight	Sets the attributes that will be highlighted on the screen.
Objects	Enables highlighting of objects (including dimensions) when you point to them in the graphical area.
Relations	Enables highlighting of objects for which relations are detected when, in an object-drawing mode, you point to them in the graphical area.

View	Setting for how Prinect displays certain features.
Opposite layer objects	Select to start seeing the objects in the layer applied to the reverse side. In Color, select a color in which you want to see these objects. In Line width, enter how wide (in pixels) you want them to appear on the screen.
Color	Use the dropdown list to choose a color for how the objects on the reverse side will be displayed.
Line width	Type a value (in pixels) of how wide you want to view the reverse-side objects on the screen.
Opposite bleed	Check to start seeing the bleed applied on the reverse side. In Style, select the style that Prinect will use to display the bleed contour.
Style	The style in which Prinect will display the bleed contour. To select a style, click the browse button, and then select the style and its visual properties.

Modes Options	An option for setting how the selection rectangle is defined.
Single-click select mode	When this check box is selected, defining the rectangle that encompasses the object to select is done by two clicks: (1) Click, (2) drag and (3) release, whereupon the selection is done. Learn more about the two rectangle-defining techniques.

Nick Marker	Properties setting the visualization of nicks in 1ups and print drawings.
Print drawing length	Type a value for how long you want nicks to appears in print drawings.
Draw marker	The minimum size that the nick will have on the screen. For example, when you start zooming out and the nick size becomes smaller than the value set here, a substitute draw marker indicates the nick.
Style	Click the browse button to set how the draw marker will appear on the screen. After you have set the properties, in the read-only field you will see the chosen style name and pattern.

Flute Symbol	Click the browse button to set how flute symbols will appear on the screen. After you have set the properties, in the read-only field you will see the name of the chosen style, its pattern, color, and other properties.
