The 3D work environment: The Parts tab

In this tab, you can manage the spatial positioning of the 3D model's parts.

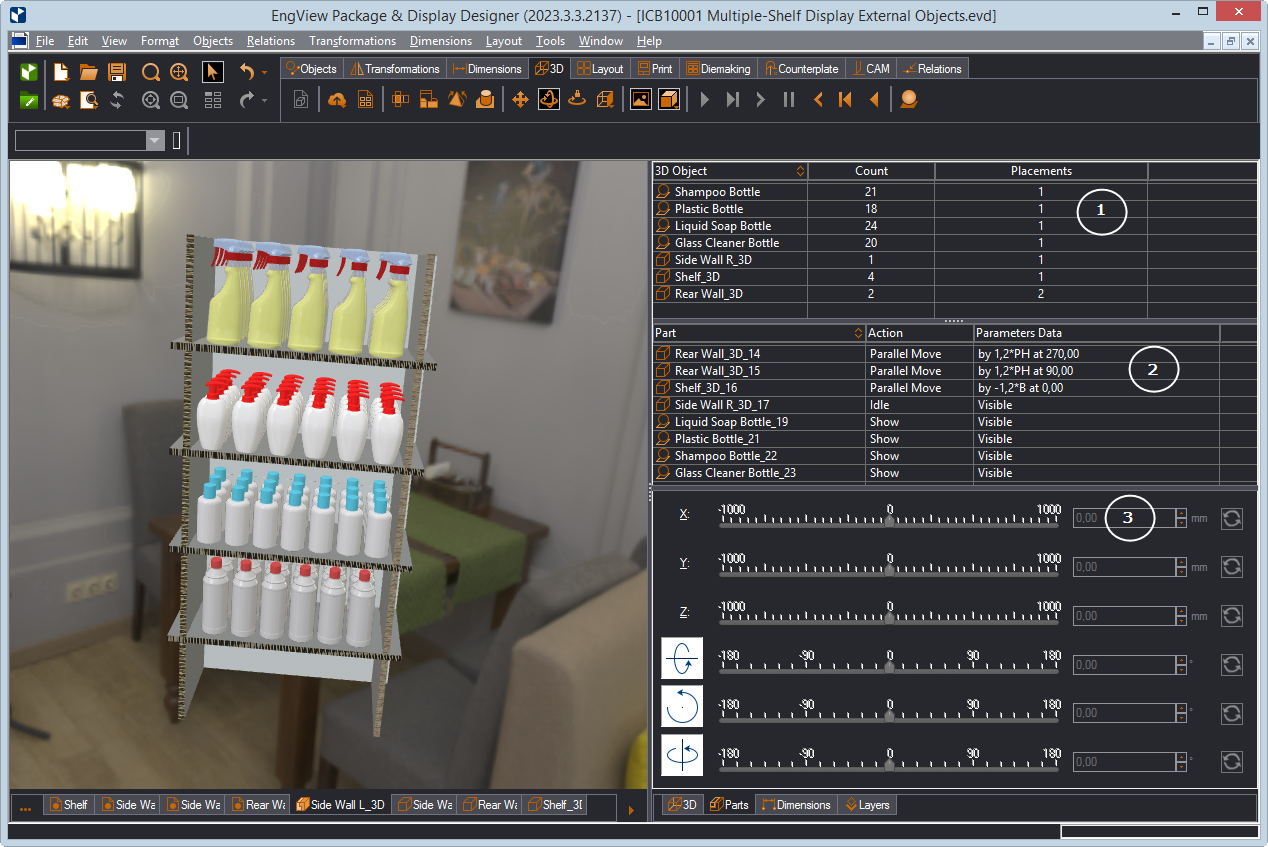

1. This section lists the external objects inserted into the 3D model. The Count column displays the total number of pieces of each external objects; the Placements column displays on how many separate places across the model the respective external model is placed.
2. This section lists the individual parts that take part in the assembled 3D model. The Action column displays the action that is assigned to the part; the Parameters Data column shows the expression that defines the action.
3. This section table lists the measure instruments for the spatial positioning of the parts and external objects into the model. These instruments are identical with the set in the Folding Part Properties dialog box, and appear here to enable faster positioning of the parts and objects.
