IMPORTANT: When exporting files, EngView does not export hidden objects, namely:
To set up a file exporting job
［エクスポート］ダイアログボックスが表示されます。
ファイルをエクスポートするには、［ファイルへ］をクリックします。
Project Organizer のプロジェクトにファイルをエクスポートするには、［Project Organizer へ］をクリックします。注：コンピュータ上に Project Organizer をインストールしておく必要があります。
［エクスポート］ダイアログボックスが表示されます。

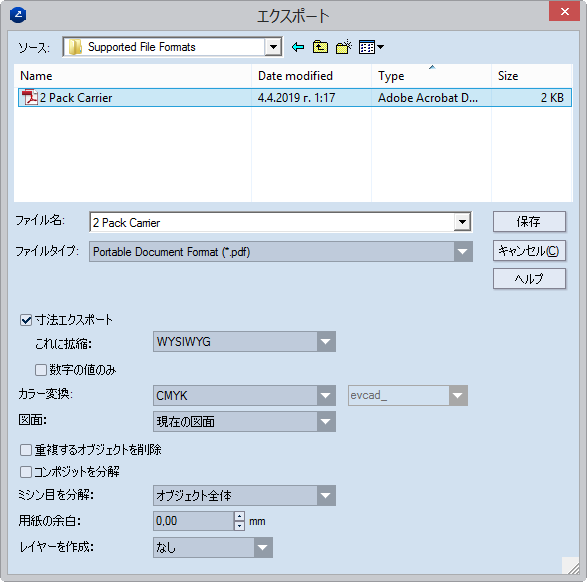

Export dimensions When the check box is selected, custom settings can be made to how dimension lines are exported. Normally how dimension lines are exported is set in the drawing's own properties. If a project contains at least one drawing that has no preset dimensions scaling factor, the Scale to list becomes available, in which a scaling option can be set for the dimension lines in the entire project.
IMPORTANT: By default the check box is not selected, and dimensions are exported according to their predefined scaling patterns. To use a scaling pattern different from the predefined one, select the check box, and then, in the Scale to dropdown list, select a different pattern or define a new one.
Scale to (Unavailable when a global scaling pattern has been defined or a specific pattern has been defined for the drawing) Sets a scaling pattern for how dimensions text will be exported. The options are:
To export "as is," select the WYSIWYG option.
To export in a specific scaling pattern, in the list select the format that you want.
If the available predefined patterns do not suit your needs, click Edit scale factors, and then define a new scaling pattern.
Numeric values only When the check box is selected, only the values of measure lines will be exported but no letters. If there is at least one drawing without a set-up scaling factor, Scale to becomes available to allow you to select a scaling option. If the text Applied to nonscaled drawings appears, the scaling will be applied only to the drawings that do not have a predefined scaling factor. This will not override previously defined values.
Color conversion Sets the color scheme to convert the file's colors during export. NOTE: Тhe following color conversion options are available: CMYK, RGB, Single spot color, Single spot color (rich view), Multiple spot color and Multiple spot color (rich view*).
* Rich view spot colors enable the export of styles in colors other than the default ones. For example, you can assign the Cutting style to be in a style different from the default one (red). After the file is exported, PDF files visualize the newly assigned, machine-recognized style.
NOTE ON NAMES FOR EXPORTED SPOT COLORS: When spot colors are selected for export, in the box type the name of the exported spot color.
Drawings sets which drawings in a project will be exported. The options:
Current drawing Only the active drawing will be exported.
Whole project All the drawings in the project will be exported. NOTE: When this option is selected, a note appears opposite the Scale to dropdown list. The note, which reads Applied to non-scaled drawings, indicates that a scaling pattern needs to be set for the drawings in the project for which no scaling pattern has been set. The scaling pattern can be the same as that in the rest of the drawings in the project or different.
All print-drawings All print drawings will be exported.
Delete duplicated Deletes any overlapping objects in the original EVD file.
IMPORTANT FOR EXPORTING LAYOUT DRAWINGS: When the check box is selected, all layout 1ups (parts) are converted into separate objects. In the exported file, (1) no layer groups are formed for the layout 1ups (parts) and (2) in each case of overlapping objects, the objects are merged into a single object. USAGE NOTE: Using this file conversion functionality comes in especially handy when exporting Package Designer data to certain programs — for example, Zund Cut Center.
Decompose composite styles After the drawing has been exported, objects in composite styles are broken down to discrete elements. These elements take the properties of the style set in the Structure tab of the original composite style. IMPORTANT: If the check box is left empty, after export the objects will have the line width set in the Production tab of the original composite style; their color and pattern will be those set in the Visual tab. Learn about the structure of composite styles.
Decompose perforatings After the drawing has been exported, objects in the CutCrease and Perforating styles are broken down to discrete elements according to the chosen criteria. The options:
Whole object All objects remain as they were in their pre-export state.
Break cut only For objects in the CutCrease style: The cutting elements are decomposed to line sections; the crease elements remain as they were in their pre-export state. For objects in the Perforating style: The objects are decomposed to as many line sections as there were in the objects before the export.
Break all All objects are decomposed to discrete line sections.
Sheet margin In the exported drawing, margins are set around the text on all sides.
Generate layers Exports the drawing by layers. In the drop-down list, select an exporting method:
By CAD layers The exported file is structured by layers that conform to the layers created in Package Designer.
By CAD styles The exported file is structured by layers as per the used styles — the objects in each of the styles applied in the project are exported in separate layers.
None The exported file contains no layers regardless of whether the project has layers.

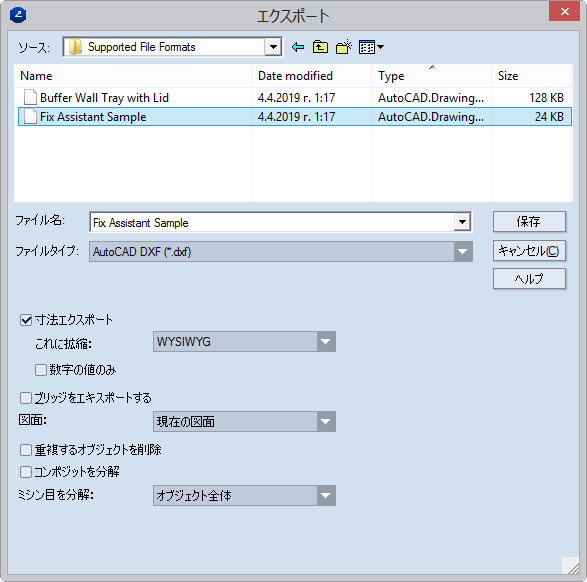

Export dimensions When the check box is selected, custom settings can be made to how dimension lines are exported. Normally how dimension lines are exported is set in the drawing's own properties. If a project contains at least one drawing that has no preset dimensions scaling factor, the Scale to list becomes available, in which a scaling option can be set for the dimension lines in the entire project.
IMPORTANT: By default the check box is not selected, and dimensions are exported according to their predefined scaling patterns. To use a scaling pattern different from the predefined one, select the check box, and then, in the Scale to dropdown list, select a different pattern or define a new one.
Scale to (Unavailable when a global scaling pattern has been defined or a specific pattern has been defined for the drawing) Sets a scaling pattern for how dimensions text will be exported. The options are:
To export "as is," select the WYSIWYG option.
To export in a specific scaling pattern, in the list select the format that you want.
If the available predefined patterns do not suit your needs, click Edit scale factors, and then define a new scaling pattern.
Numeric values only When the check box is selected, only the values of measure lines will be exported but no letters. If there is at least one drawing without a set-up scaling factor, Scale to becomes available to allow you to select a scaling option. If the text Applied to nonscaled drawings appears, the scaling will be applied only to the drawings that do not have a predefined scaling factor. This will not override previously defined values.
Export bridges When the check box is selected and you are also exporting the bridges drawing, the bridges set in the drawings — the bridges positions and widths — will be exported.
Drawings Sets which drawings in a project will be exported. The options:
Current drawing Only the active drawing will be exported.
Whole project All the drawings in the project will be exported. NOTE: When this option is selected, a note appears opposite the Scale to dropdown list. The note, which reads Applied to non-scaled drawings, indicates that a scaling pattern needs to be set for the drawings in the project for which no scaling pattern has been set. The scaling pattern can be the same as that in the rest of the drawings in the project or different.
All print drawings All print drawings will be exported.
Delete duplicated Deletes any overlapping objects in the original EVD file.
Decompose composite styles After the drawing has been exported, objects in composite styles are broken down to discrete elements. These elements take the properties of the style set in the Structure tab of the original composite style. IMPORTANT: If the check box is left empty, after export the objects will have the line width set in the Production tab of the original composite style; their color and pattern will be those set in the Visual tab. Learn about the structure of composite styles.
Decompose perforatings After the drawing has been exported, objects in the CutCrease and Perforating styles are broken down to discrete elements according to the chosen criteria. The options:
Whole object All objects remain as they were in their pre-export state.
Break cut only For objects in the CutCrease style: The cutting elements are decomposed to line sections; the crease elements remain as they were in their pre-export state. For objects in the Perforating style: The objects are decomposed to as many line sections as there were in the objects before the export.
Break all All objects are decomposed to discrete line sections.

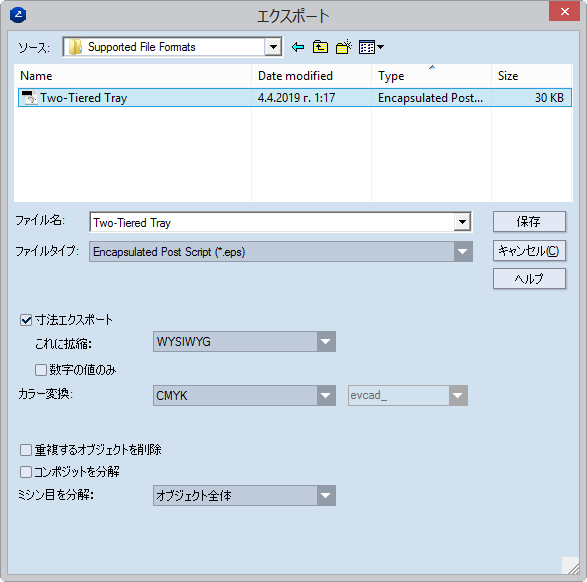

Export dimensions When the check box is selected, custom settings can be made to how dimension lines are exported. Normally how dimension lines are exported is set in the drawing's own properties. If a project contains at least one drawing that has no preset dimensions scaling factor, the Scale to list becomes available, in which a scaling option can be set for the dimension lines in the entire project.
Scale to (Unavailable when a global scaling pattern has been defined or a specific pattern has been defined for the drawing) Sets a scaling pattern for how dimensions text will be exported. The options are:
To export "as is," select the WYSIWYG option.
To export in a specific scaling pattern, in the list select the format that you want.
If the available predefined patterns do not suit your needs, click Edit scale factors, and then define a new scaling pattern.
Numeric values only When the check box is selected, only the values of measure lines will be exported but no letters. If there is at least one drawing without a set-up scaling factor, Scale to becomes available to allow you to select a scaling option. If the text Applied to nonscaled drawings appears, the scaling will be applied only to the drawings that do not have a predefined scaling factor. This will not override previously defined values.
Color conversion Sets the color scheme to convert the file's colors during export. NOTE: The CMYK and RGB color conversion options are available.
Delete duplicated Deletes any overlapping objects in the original EVD file.
IMPORTANT FOR EXPORTING LAYOUT DRAWINGS: When the check box is selected, all layout 1ups (parts) are converted into separate objects. In the exported file, (1) no layer groups are formed for the layout 1ups (parts) and (2) in each case of overlapping objects, the objects are merged into a single object. USAGE NOTE: Using this file conversion functionality comes in especially handy when exporting Package Designer data to certain programs — for example, Zund Cut Center.
Decompose composite styles After the drawing has been exported, objects in composite styles are broken down to discrete elements. These elements take the properties of the style set in the Structure tab of the original composite style. IMPORTANT: If the check box is left empty, after export the objects will have the line width set in the Production tab of the original composite style; their color and pattern will be those set in the Visual tab. Learn about the structure of composite styles.
Decompose perforatings After the drawing has been exported, objects in the CutCrease and Perforating styles are broken down to discrete elements according to the chosen criteria. The options:
Whole object All objects remain as they were in their pre-export state.
Break cut only For objects in the CutCrease style: The cutting elements are decomposed to line sections; the crease elements remain as they were in their pre-export state. For objects in the Perforating style: The objects are decomposed to as many line sections as there were in the objects before the export.
Break all All objects are decomposed to discrete line sections.

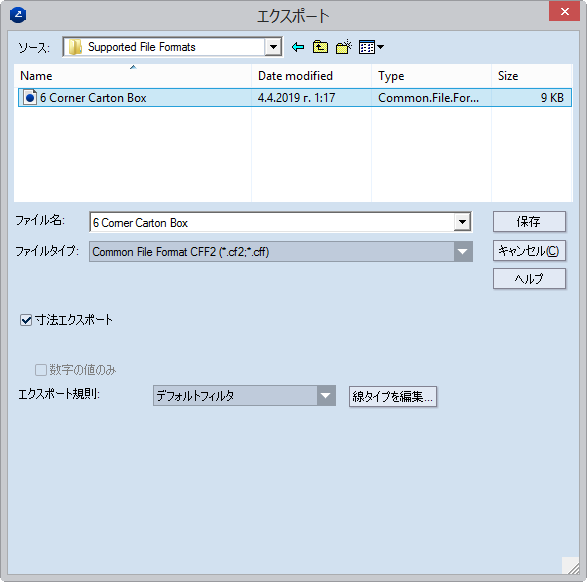

Export dimensions When the check box is selected, custom settings can be made to how dimension lines are exported. Normally how dimension lines are exported is set in the drawing's own properties. If a project contains at least one drawing that has no preset dimensions scaling factor, the Scale to list becomes available, in which a scaling option can be set for the dimension lines in the entire project.
Numeric values only When the check box is selected, only the values of measure lines will be exported but no letters. If there is at least one drawing without a set-up scaling factor, Scale to becomes available to allow you to select a scaling option. If the text Applied to nonscaled drawings appears, the scaling will be applied only to the drawings that do not have a predefined scaling factor. This will not override previously defined values.
Export rules In the drop-down list, select the rules set that control how Package Designer will associate objects when it exports them to the CF2 file format structure. TIP: To define rules sets, click Modify, and then, in the dialog box that appears, set the relevant object associations. The defined rules sets then appear in the in the drop-down list.
Export dimensions When the check box is selected, custom settings can be made to how dimension lines are exported. Normally how dimension lines are exported is set in the drawing's own properties. If a project contains at least one drawing that has no preset dimensions scaling factor, the Scale to list becomes available, in which a scaling option can be set for the dimension lines in the entire project.
IMPORTANT: By default the check box is not selected, and dimensions are exported according to their predefined scaling patterns. To use a scaling pattern different from the predefined one, select the check box, and then, in the Scale to dropdown list, select a different pattern or define a new one.
Scale to (Unavailable when a global scaling pattern has been defined or a specific pattern has been defined for the drawing) Sets a scaling pattern for how dimensions text will be exported. The options are:
To export "as is," select the WYSIWYG option.
To export in a specific scaling pattern, in the list select the format that you want.
If the available predefined patterns do not suit your needs, click Edit scale factors, and then define a new scaling pattern.
Numeric values only When the check box is selected, only the values of measure lines will be exported but no letters. If there is at least one drawing without a set-up scaling factor, Scale to becomes available to allow you to select a scaling option. If the text Applied to nonscaled drawings appears, the scaling will be applied only to the drawings that do not have a predefined scaling factor. This will not override previously defined values.
Export dimensions When the check box is selected, custom settings can be made to how dimension lines are exported. Normally how dimension lines are exported is set in the drawing's own properties. If a project contains at least one drawing that has no preset dimensions scaling factor, the Scale to list becomes available, in which you can set a scaling option for the dimension lines in the entire project.
IMPORTANT: By default the check box is not selected, and dimensions are exported according to their predefined scaling patterns. To use a scaling pattern different from the predefined one, select the check box, and then, in the Scale to dropdown list, select a different pattern or define a new one.
Dimensions numeric values only When the check box is selected, only the values of measure lines will be exported but no letters. If there is at least one drawing without a set-up scaling factor, Scale to becomes available to allow you to select a scaling option. If the text Applied to nonscaled drawings appears, the scaling will be applied only to the drawings that do not have a predefined scaling factor. This will not override previously defined values.

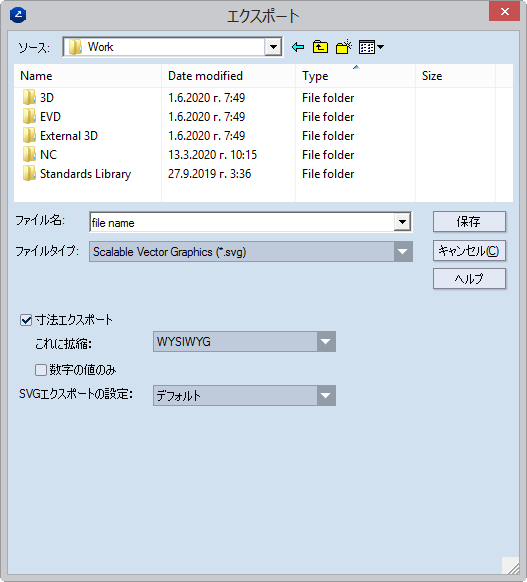

SVG export settings

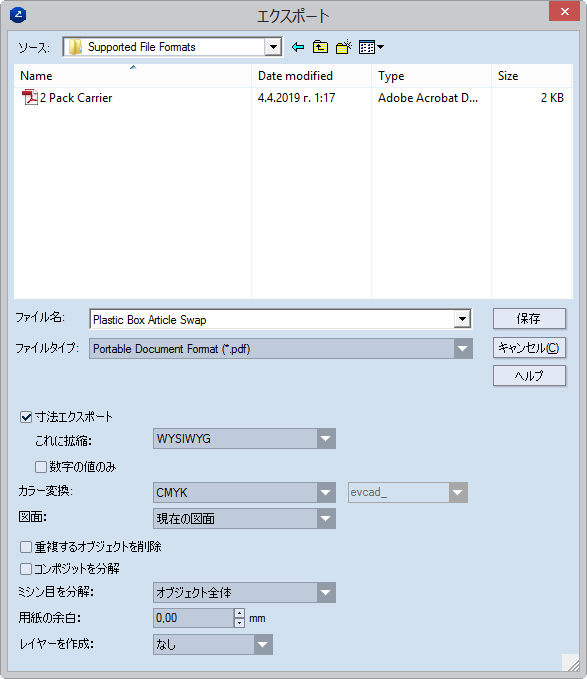

寸法エクスポート： このチェックボックスを選択すると、寸法線のエクスポート方法についてカスタム設定ができるようになります。通常、寸法線のエクスポート方法は、図面自体のプロパティで設定します。寸法の倍率が設定されていない図面がプロジェクトに少なくとも 1 枚含まれている場合、倍率リストが使用できます。ここで、プロジェクト全体の寸法線に拡大/縮小オプションを設定できます。
重要：デフォルトでは、このチェックボックスは選択されていません。寸法は定義済みの倍率パターンに従ってエクスポートされます。定義済みの値とは異なる倍率パターンを使用するには、チェックボックスを選択してから倍率リストで異なるパターンを選択するか、または新しく定義します。
これに拡縮： （グローバルな倍率パターンが定義されているか、または特定のパターンが図面に対して定義されている場合は使用不可） 寸法テキストをエクスポートするための倍率パターンを設定します。オプションは次のとおりです。
「そのまま」エクスポートする場合は、WYSIWYG オプションを選択します。
特定の倍率パターンでエクスポートする場合は、リスト内で希望するフォーマットを選択します。
使用可能な定義済みパターンがニーズに合わない場合は、［倍率編集］をクリックしてから倍率パターンを新しく定義します。
数字の値のみ： このチェックボックスを選択すると、測定ラインの値のみがエクスポートされ、文字はエクスポートされません。倍率が設定されていない図面が少なくとも 1 枚ある場合は、［これに拡縮］を使用して拡大/縮尺オプションを選択できます。「拡縮されていない図面に適用」というテキストが表示された場合、倍率を設定されていない図面にのみ拡大/縮小が行われます。これは、以前に定義していた値よりも優先されるわけではありません。
カラー変換： （EPS、PDF、AI ファイルに適用）エクスポート中にファイルのカラーを変換するカラースキームを設定します。
注：PDF に対して使用可能なカラー変換オプション：CMYK、RGB、シングルスポットカラー、シングルスポットカラー（リッチビュー）、複数のスポットカラー、複数のスポットカラー（リッチビュー*）。EPS と AI に対しては、CMYK と RGB のカラー変換オプションが使用できます。
* リッチビュースポットカラーを使用すると、デフォルト以外のカラーのスタイルをエクスポートできるようになります。たとえば、切り取りスタイルにデフォルト（赤）以外のスタイルを割り当てることができます。ファイルをエクスポートした後、PDF ファイルは新しく割り当てたスタイルを視覚化し、これをマシンが認識します。
エクスポートされたスポットカラーの名前についての注：エクスポート用にスポットカラーを選択する場合は、エクスポートされるスポットカラーの名前をボックス内に入力します。
エクスポート規則： （CFF、CF2、DDS、DDE、DS2、DD3 に適用） エクスポートされるファイルフォーマット内でスタイルをどのように変換するかを定めます。
ブリッジをエクスポートする： このチェックボックスを選択すると、ブリッジ（ブリッジ図面内の）がエクスポートされます。
図面： プロジェクト内のどの図面がエクスポートされるかを設定します。オプション：
現在の図面： アクティブな図面のみがエクスポートされます。
プロジェクト全体： プロジェクト内の図面がすべてエクスポートされます。注：このオプションを選択すると、［これに拡縮］ドロップダウンリストの向かい側に注釈が表示されます。「拡縮されていない図面に適用」という注釈は、倍率パターンが設定されていないプロジェクトの図面に対して、倍率パターンを設定する必要があることを示しています。倍率パターンは、プロジェクト内の他の図面と同じ値でも異なる値でもかまいません。
すべての印刷図面： 印刷図面がすべてエクスポートされます。
重複するオブジェクトを削除： （ファイルフォーマット DXF、DWG、PDF、EPS、AI に適用）元の EVD ファイル内で重なっているオブジェクトがあれば削除します。
レイアウト図面を PDF および EPS ファイルフォーマットにエクスポートする場合の重要事項：このチェックボックスを選択すると、レイアウト 1up（パーツ）はすべて個別のオブジェクトに変換されます。エクスポートされるファイルでは、(1) レイアウト 1up（パーツ）に対してレイヤーグループは形成されません。また、(2) 重なっているオブジェクトはそれぞれ単一のオブジェクトにマージされます。使用上の注：このファイル変換機能の使用は、Package Designer のデータを特定のプログラム（Zund Cut Center など）に変換する場合に特に便利です。
コンポジットを分解： 図面をエクスポートした後、複合スタイルは個別の要素に分解されます。これらの要素は、元の複合スタイルの［構造］タブで設定したスタイルのプロパティを取得します。重要：このチェックボックスを選択していない場合、エクスポートした後にオブジェクトの線幅は、元の複合スタイルの［生産］タブで設定した値になります。色とパターンは、［ビジュアル］タブで設定した値になります。複合スタイルの構造についての説明をご覧ください。
穿孔を分解： 図面をエクスポートした後、カット・折りスタイルと穿孔スタイルのオブジェクトは、選択した基準に従って個別の要素に分解されます。オプション：
オブジェクト全体： オブジェクトはすべて、エクスポート前の状態のままです。
カットのみ分割： カット・折りスタイルのオブジェクトの場合：カット要素はラインセクションに分解されます。折り要素はエクスポート前の状態のままです。穿孔スタイルのオブジェクトの場合：オブジェクトは、エクスポートする前のオブジェクトのように、多数のラインセクションに分解されます。
すべて分割 オブジェクトはすべてラインセクションに分解されます。
用紙の余白： （PDFファイルのみ）エクスポートされる図面では、すべての側でテキストの周囲にマージンが設定されます。
レイヤーを作成： （PDF ファイルのみ）レイヤーで図面をエクスポートします。ドロップダウンリストでエクスポート方法を選択します。
CAD レイヤーで： エクスポートされるファイルは、Package Designer で作成したレイヤーに準拠するレイヤーで構成されます。
CAD スタイルで： エクスポートされるファイルは、使用するスタイルに従って作成されます — プロジェクト内で適用されている各スタイルのオブジェクトが、別々のレイヤーにエクスポートされます。
なし： プロジェクトにレイヤーがあるかどうかに関わらず、エクスポートされるファイルにはレイヤーが含まれません。
