Exporting the 3D model

The procedure that follows explains the settings that the integration uses to export 3D models in various file formats.

To export the model

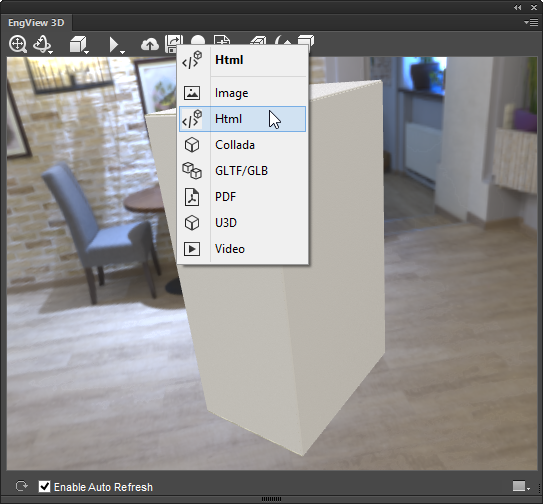

  1. On the EngView 3D panel, click Export .

a listof the export options appears.

  1. Select the file format in which you want to export.

Depending on the selected file format, the respective dialog box appears, displays the applicable export rules. In the links below, find details about the rules for each file format:

  1. Edit the export-related settings in a way that works for you.
